A182 F304l F304 Stainless Steel 316l Flanges 1/2 24 Stainless Steel Threaded Pipe Flange

100pcs
MOQ
$10/pcs
Price
A182 F304l F304 Stainless Steel 316l Flanges 1/2 24 Stainless Steel Threaded Pipe Flange
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Stainless Steel Flanges Suppliers
Standard: ANSI, DIN, GB, JIS
Material: Stainless Steel
Connection: Welding/Thresded
Sealing Surface: FF/RF/Mf/Tg/Rj
HS Code: 730711
Transport Package: Wooden Pallets,Wooden Case,or According To Custome
Color: Black, Yellow, Galvanized, Primary, Etc.
High Light:

Stainless Steel 316l Flanges

,

Stainless Steel 304l Flanges

,

F304 Stainless Steel Threaded Flange

Basic Infomation
Place of Origin: wuxi china
Brand Name: TISCO POSCO
Certification: CE/SGS/ISO
Model Number: ANSI B16.5, A105 150LB / 300LB / 600LB / 900LB / 1500LB / 2500LB
Payment & Shipping Terms
Packaging Details: carton box
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month
Product Description

1.304l Stainless Steel Flange Stainless Steel Fittings For Industry





Ukraine, Iran, Australia, Canada, USA, UK, etc...We make all kinds of flex-related products, such as flexible metal hoses, expansion joints, braidings, hose fittings, and related machines, such as elastomer hose forming machine, hydraulic forming machine, wire braiding machine, rewinding machine,Our metal hose and braid is offered in a variety of different alloys that meet or exceed even the most stringent service conditions that industry demands.







Product Name flange(304/F304 Pipe Fitting Wn RF/Rtj/FF ANSI/JIS/DIN/API 6A Cl150/Pn10/Pn16 Forged Stainless Steel Weld Neck Pipe Flange)
Size 1/2"-110"
Pressure 150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000
Standard ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc.
Wall thickness SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Material

Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S, A182F347H, A182F316Ti, 317/317L, 904L, 1.4301, 1.4307, 1.4401, 1.4571,1.4541, 254Mo and etc.

Carbon steel: A105, A350LF2, S235Jr, S275Jr, St37, St45.8, A42CP, A48CP, E24 , A515 Gr60, A515 Gr 70 etc.

Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462,1.4410,1.4501 and etc.

Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.

Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,C22, C-276, Monel400, Alloy20 etc.

Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3,15Crmo, etc.

Application Petrochemical industy;avation and aerospace industry;pharmaceutical industry;gas exhaust;power plant;ship buliding;water treament,etc.
Advantages ready stock,faster delivery time;available in all sizes,customized;high quality

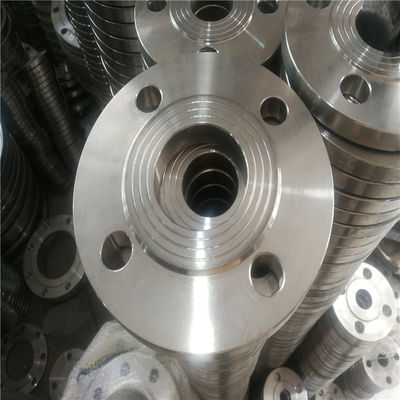

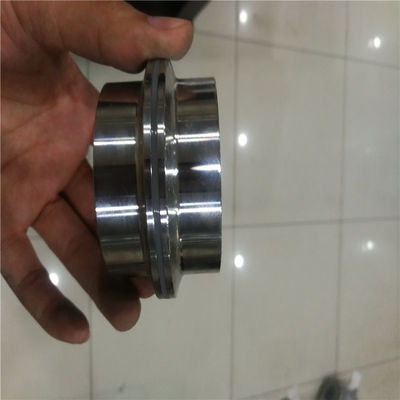

3.product show

A182 F304l F304 Stainless Steel 316l Flanges 1/2 24 Stainless Steel Threaded Pipe Flange 0



A182 F304l F304 Stainless Steel 316l Flanges 1/2 24 Stainless Steel Threaded Pipe Flange 1



A182 F304l F304 Stainless Steel 316l Flanges 1/2 24 Stainless Steel Threaded Pipe Flange 2



A182 F304l F304 Stainless Steel 316l Flanges 1/2 24 Stainless Steel Threaded Pipe Flange 3



4.FAQ

Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.







Flange Standard Flange Size Flange Pressure Flange Type
ANSI B16.5 1/2'-24' Class150 Class300 Blind Plate Slip onWelding Neck
ASME B16.5   Class600 Class900 Socket weling Threaded RTJ(tring type joint )
ASA B16.5   Class1500 Class2500 Facing: FF (flat face) RF (raised face)
ANSI B16.47 (A) 1/2'-60' Class150,300 Slip on Welding neck RTJ(ring type joint)
    Class400,600,900 Facing: FF (flat face) RF (raised face)
ANSI B16.5 (B) 26'-60' Class75,150,300 Slip on Welding neck RTJ(ring type joint)
      Facing: FF (flat face) RF (raised face)
ANSI B16.36 1"-24" Class300,400,600 Slip on Welding neck Threaded RTJ
    Class900,1500,2500 Facing: FF (flat face) RF (raised face)
EN1092-1 Type01 DN10-DN2000 pn6 pn10 pn16 pn25 pn40 Plate flange
EN1092-1 Type05 DN10-DN3000 pn6 pn10 pn16 pn25 pn40 Blind flange
EN1092-1 Type11 DN15-DN3000 pn6 pn10 pn16 pn25 pn40 Welding neck flange
EN1092-1 Type13 DN10-DN150 pn6 pn10 pn16 pn25 pn40 Threaded flange
EN1092-1 Type02 DN15-DN1000 pn6 pn10 pn16 Loose flange
GOST 12820-80 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Plate flange
    pn2.5MPa 4.0MPa 6.4MPa FF(flate face) RF(raised face)
GOST 12821-80 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Welding neck flange
    pn2.5MPa 4.0MPa 6.4MPa FF(flate face) RF(raised face)
GOST 12836 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Blind flange
    pn2.5MPa 4.0MPa FF(flate face) RF(raised face)
