904l 347 Stainless Steel Flange Ss 304 Astm Asme Sus Aisi 100mm 4 3 2 Inch Ss Flange

Place of Origin wuxi china
Brand Name BF
Certification CE/SGS/ISO
Model Number ANSI B16.5, A105 150LB / 300LB / 600LB / 900LB / 1500LB / 2500LB
Minimum Order Quantity 100pcs
Price $10/pcs
Packaging Details carton box
Delivery Time 7-10days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000pcs/month
Product Details
Name Stainless Steel 304 Flanges Standard ANSI, DIN, GB, JIS
Material Stainless Steel Connection Welding/Thresded
Sealing Surface FF/RF/Mf/Tg/Rj HS Code 730711
Transport Package Wooden Pallets,Wooden Case,or According To Custome Color Black, Yellow, Galvanized, Primary, Etc.
High Light

Stainless Steel Flange 100mm

,

Stainless Steel Flange Asme

,

Stainless Steel 347 Flanges

Leave a Message
Product Description

1.Sus Aisi Astm Stainless Steel Blind Flange For Industry With Cold Rolled



Our metal hose and braid is offered in a variety of different alloys that meet or exceed even the most stringent service conditions that industry demands.

All kinds of expansion joints for different applications are available, such as metal expansion joints, fabric expansion joint, rubber expansion joints. For details, please refer to our catalogue.







Size

1/2"-24"

26"-48"

Thickness sch5, sch5s, sch10s, sch10, sch20, sch30, sch40, sch40s, sch80s,STD, SCH60, XS, sch80, sch100, sch120, sch140, sch160, XXS, or as per your requirement
Standard ASME B16.5, ASME B16.47A, ASME B16.47B, MSS SP 44, DIN 2632, DIN2633, DIN2634, DIN2635, DIN2636, JISB2220, BS4504, GB, etc
Mterial
  1. carbon steel: A105, A350 LF2, A694 F52, F65, Q235 etc.

  2. Stainless steel: ASTM A182 F304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10, A182 F51, F53, F55 etc.

Surface usually paint black, galv., for carbon steel bend and alloy steel bend, and for stainless steel bends we usually dont do anything on the surface
Certification ISO 9001:2015
Packing plywood cases, pallets, or as per your request.
Application Petroleum, chemical, machinery, electric power, shipbuilding, papermaking, construction etc









3.product show

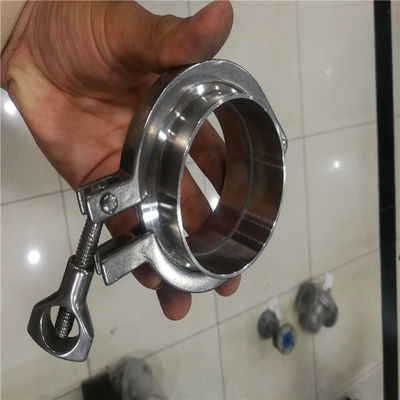

904l 347 Stainless Steel Flange Ss 304 Astm Asme Sus Aisi 100mm 4 3 2 Inch Ss Flange 0

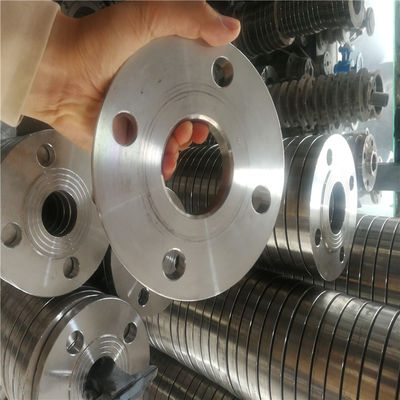

904l 347 Stainless Steel Flange Ss 304 Astm Asme Sus Aisi 100mm 4 3 2 Inch Ss Flange 1



904l 347 Stainless Steel Flange Ss 304 Astm Asme Sus Aisi 100mm 4 3 2 Inch Ss Flange 2



904l 347 Stainless Steel Flange Ss 304 Astm Asme Sus Aisi 100mm 4 3 2 Inch Ss Flange 3











Flange Standard Flange Size Flange Pressure Flange Type
ANSI B16.5 1/2'-24' Class150 Class300 Blind Plate Slip onWelding Neck
ASME B16.5   Class600 Class900 Socket weling Threaded RTJ(tring type joint )
ASA B16.5   Class1500 Class2500 Facing: FF (flat face) RF (raised face)
ANSI B16.47 (A) 1/2'-60' Class150,300 Slip on Welding neck RTJ(ring type joint)
    Class400,600,900 Facing: FF (flat face) RF (raised face)
ANSI B16.5 (B) 26'-60' Class75,150,300 Slip on Welding neck RTJ(ring type joint)
      Facing: FF (flat face) RF (raised face)
ANSI B16.36 1"-24" Class300,400,600 Slip on Welding neck Threaded RTJ
    Class900,1500,2500 Facing: FF (flat face) RF (raised face)
EN1092-1 Type01 DN10-DN2000 pn6 pn10 pn16 pn25 pn40 Plate flange
EN1092-1 Type05 DN10-DN3000 pn6 pn10 pn16 pn25 pn40 Blind flange
EN1092-1 Type11 DN15-DN3000 pn6 pn10 pn16 pn25 pn40 Welding neck flange
EN1092-1 Type13 DN10-DN150 pn6 pn10 pn16 pn25 pn40 Threaded flange
EN1092-1 Type02 DN15-DN1000 pn6 pn10 pn16 Loose flange
GOST 12820-80 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Plate flange
    pn2.5MPa 4.0MPa 6.4MPa FF(flate face) RF(raised face)
GOST 12821-80 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Welding neck flange
    pn2.5MPa 4.0MPa 6.4MPa FF(flate face) RF(raised face)
GOST 12836 DN15-DN2000 pn0.6MPa 1.0MPa 1.6MPa Blind flange
    pn2.5MPa 4.0MPa FF(flate face) RF(raised face)
