1. Hot Rolled 304l Stainless Steel Sheet For Ship Use With Ce Certificate
Pipes/tubes Size: OD: 4-830mm, WT: 0.5-45mm Length: Up to 20 Meter/PCS
Austenitic Stainless Steel: 304/304L(1.4301/1.4307); 316/316L (1.4401/1.4404); 316Ti(1.4571); 321(1.4541); 310S(1.4845); 317L(1.1138); 321H(1.4878); 304H(1.4948); 347H(1.4550);
Super-Austenitic Stainless Steel: 904L, S30432, S31042, 6Mo(S31254, N08367)
| Item | Description |
| Standard | ASTM A240 / AISI / DIN / JIS / GB |
Grade |
201/202 |
| 304/304L/304H/309S/310S/316L/316Ti/317L/321//S31803/S32205/904L | |
| 409L/410S/420J1/J2/430 439 441 444 446 | |
| Thickness | 0.3-6.0mm for cold sheet scope; 3.0-100mm for hot rolled scope |
| Width&Length | 1000mm/1219mm/1500mm/1800mm/2000mm |
| Length from cutting, as requirement | |
| Surface | Mill surface: 2B/BA/No.1 |
| Processing surface: 8k mirror/Hairline/No.4 Satin/Bead blast/Color etched | |
| Protection | Transparent film/ Blue fulm/PVC film or laser film |
| Package | Standard export package with metal pallet + angle bar protection + |
| Processing | Edging/Laser(Plasma/Water Jet) cutting/Leveling/Slitting Chinese steel SUS AISI 304 316L Stainless Steel Sheet Plate |
2.chemical composition
| C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other | |
| 201 | ≤0.15 | ≤1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N≤0.25 |
| 202 | ≤0.15 | ≤1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N≤0.25 |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - |
| 303 | ≤0.15 | ≤1.00 | ≤2.00 | 0.2 | ≥0.015 | 17-19 | ≤0.6 | 8.0-10.0 | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 0.04 | 0.03 | 16-18 | - | ≤0.6 |

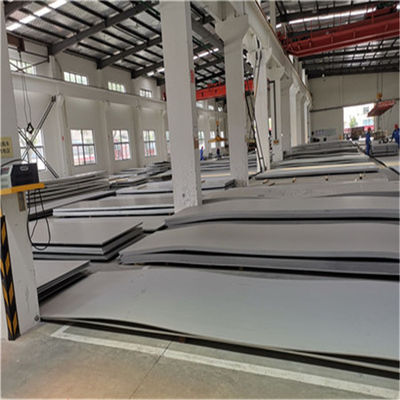

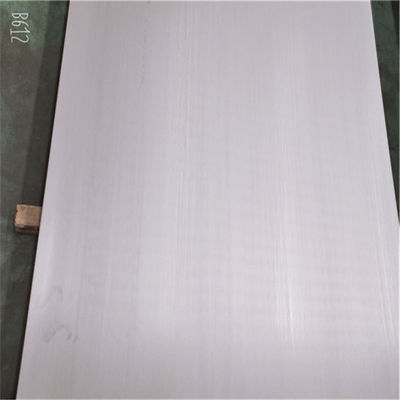

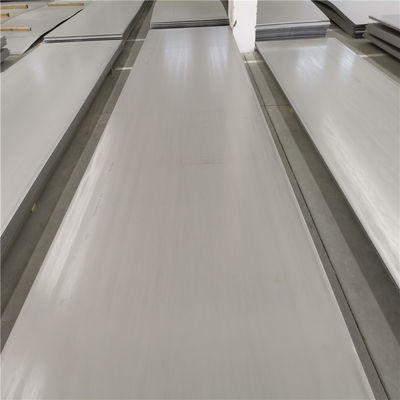

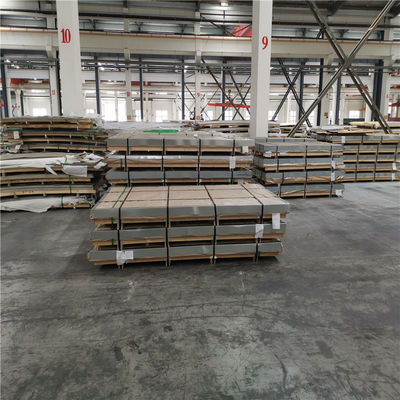

3.product show
