321 303 316l Stainless Steel Sheet Metal 5mm 16 Gauge Stainless Steel Sheet 4x8

  • small.img.alt
  • img.alt
  • img.alt
Place of Origin china
Brand Name BF
Certification CE/SGS/ISO
Model Number 201/304/316/304l/316l
Minimum Order Quantity 1TON
Price $2300/TON
Packaging Details wooden pallet or as request
Delivery Time 7-10days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000ton/month
Product Details
Name 316 Stainless Steel Sheet Metal Finish 2B/NO.1/NO.4/mirror
Width 1220/1500/2000/2500/6000mm Payment Term FOB/CFR/EXW
Application Construction,chemical,Industry Type Plate,stainless Steel Sheet
Standard ASTM,JIS,AISI,GB Length 1000-6000mm Or Customer's Requirement
Grade 201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect Edge Slit Edge,Mill Edge
Technique Cold Rolled Hot Rolled Thickness 0.1-10mm
High Light

303 Stainless Steel Sheet Metal 5mm

,

321 Stainless Steel Sheet Metal 5mm

,

Stainless Steel Sheet Metal 316 bofu
Leave a Message
Product Description

1. Hot Rolled 316 Stainless Steel Plate With 2b Finish And Wooden Pallet



wuxi bofu Steel Co., Ltd, is a company specialized in producing and marketing stainless steel pipe products. The company is jointly established by two companies which are professional manufacture of stainless steel welded pipe and stainless steel seamless pipe respectively. Company has professional production equipment and advanced testing equipment. We also have passed certificated by ISO9001-2000 and PED, and have obtained the Manufacture License of Special Equipment People′s Republic of China.







Name Stainless steel plate
Grade 201, 202 , 304 , 304L , 304H , 309, 309S , 310 , 310S ,316, 316L, 316Ti, 317, 317L, 321, 347, 347H , 409L , 420 , 420J1 , 420J2 , 430 , 431,434 , 436L , 439 , 441, 443 , 444 , 904L , 2205 , 2507 , 253MA , 254Mo , 631 , 654MO ,17-4pH ,N08367 (AL 6XN ) ,etc.
Surface 2B, No.1, No. 4, No.8, BA, 6K, 1D, 2D, Mirror Finished, 8K, Hair Line with PVC, Color
Width 1000 mm, 4 '(1219 mm), 1500 mm 1800mm, 2000mm & Customsized(5mm-3000mm)
Thickness 0.05mm-100mm
Length ≥ 2000mm, 2440mm, 3000mm, 3048mm, 6000mm, & Customsized
Packing Standard export packing
Technique Cold rolled/hot rolled
Payment terms T/T, L/C at sight
Application Suitable for all kinds of industrial production
Shipment By sea, by air, by express(Shipment can be made within 7-10 days.)
Origin TISCO, ZPSS, Baosteel, JISCO, ZSESS, ATI, SMC, HAYNES, VDM, ArcelorMittal, Outokumpo, etc.
Standard ASME, ASTM, EN, BS, GB, DIN, JIS, etc
EN Standard:
Austenitic: 1.4372 ,1.4373, 1.4310, 1.4305, 1.4301, 1.4306 , 1.4318 ,1.4335, 1.4833 , 1.4835 , 1.4845, 1.4841, 1.4401 , 1.4404 , 1.4571 ,1.4438, 1.4541 , 1.4878 , 1.4550 , 1.4539 , 1.4563 , 1.4547
Duplex: 1.4462 , 1.4362 ,1.4410 , 1.4507
Ferritic :1.4512, 1.400 , 1.4016 ,1.4113 , 1.4526 ,1.4521 , 1.4530 , 1.4749 ,1.4057;
Martensitic: 1.4006 , 1.4021 ,1.4418 ,S165M ,S135M;



2.chemical composition



C Si Mn P≤ S≤ Cr Mo Ni Other
201 ≤0.15 ≤1.00 5.5-7.5 0.06 0.03 16-18 - 3.5-5.5 N≤0.25
202 ≤0.15 ≤1.00 7.5-10.0 0.06 0.03 17-19 - 4.0-6.0 N≤0.25
301 ≤0.15 ≤1.00 ≤2.00 0.045 0.03 16-18 - 6.0-8.0 -
303 ≤0.15 ≤1.00 ≤2.00 0.2 ≥0.015 17-19 ≤0.6 8.0-10.0 -
304 ≤0.08 ≤1.00 ≤2.00 0.045 0.03 18-20 - 8-10.5 -
316 ≤0.08 ≤1.00 ≤2.00 0.045 0.03 16-18 2-3 10-14 -
430 ≤0.12 ≤0.75 ≤1.00 0.04 0.03 16-18 - ≤0.6

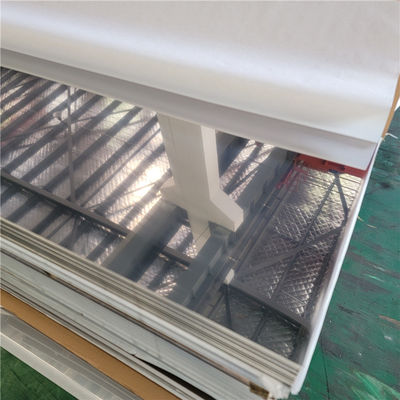

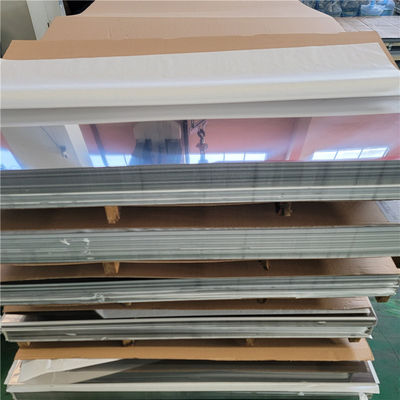

3.product show



321 303 316l Stainless Steel Sheet Metal 5mm 16 Gauge Stainless Steel Sheet 4x8 0



321 303 316l Stainless Steel Sheet Metal 5mm 16 Gauge Stainless Steel Sheet 4x8 1



321 303 316l Stainless Steel Sheet Metal 5mm 16 Gauge Stainless Steel Sheet 4x8 2
