Place of Origin:
china
Brand Name:
TISCO POSCO
Certification:
CE/SGS/ISO
Model Number:
201/304/316/304l/316l
Contact Us
1. No.1 Finish 316 Stainless Steel Sheet With 1m 1.5m 2m 3m Width
We have built very good relationships with many steel products factory around China and can always provide you all sizes of steel products with high quality and competitive price.CXT also have been well know for a major wholesaler and stockholder for steel pipe/tube, steel plate, steel coil, wear plate (Both Oversea trakemark and Domestic AR steels From Mega Mills), We also have a reliable fabrication center for Steel produts to make sure quality control and quick delivery time.
| Nominal diameter (mm): | to 16 | 16 - 40 | 40 - 100 | 100 - 160 | 160 - 250 | 250 - 330 | 330 - 660 |
| Rm - Tensile strength (MPa) (+QT) | 1100-1300 | 1000-1200 | 900-1100 | 800-950 | 750-900 | 700 | 600 |
| Nominal thickness (mm): | 0.3 - 3 |
| Rm - Tensile strength (MPa) (+A) | 620 |
| Rm - Tensile strength (MPa) (+AC) | 630 |
| Nominal thickness (mm): | to 8 | 8 - 20 | 20 - 50 | 50 - 80 |
| Rm - Tensile strength (MPa) (+QT) | 1100 | 1000 | 900 | 800 |
| Rm - Tensile strength (MPa) (+C) | 720 |
| Rm - Tensile strength (MPa) (+LC) | 670 |
2.chemical composition
| C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other | |
| 201 | ≤0.15 | ≤1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N≤0.25 |
| 202 | ≤0.15 | ≤1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N≤0.25 |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - |
| 303 | ≤0.15 | ≤1.00 | ≤2.00 | 0.2 | ≥0.015 | 17-19 | ≤0.6 | 8.0-10.0 | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 0.04 | 0.03 | 16-18 | - | ≤0.6 |

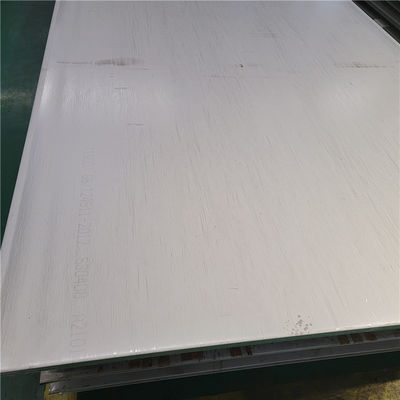

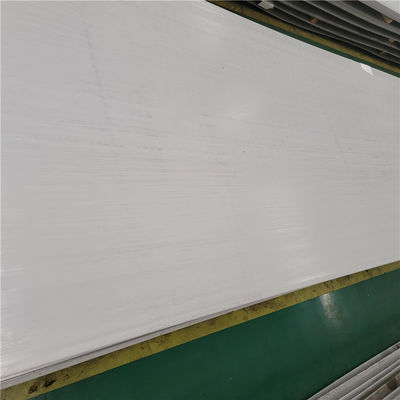

3.product show
