1. 2mm 8x4 No 4 Bright Annealed Stainless Steel Sheet For Restaurants
We are one of the biggest supplier for steel products with a 80, 000-square-meter warehouse,Covers an area more than 120, 000 square meters in size, and well over 50 million USD in assets.Our main products including stainless steel pipe, stainless steel plate, stainless steel bar,
| Stainless Steel Grades and Mechanical Properties | |||||||
| Common | Condition | 0.2‰ Proof | Tensile | Tensile | Hardess | Rockewell | Vickers |
| Name | Strength | Strength | Elongation | Brinell | Hardness | Hardness | |
| MPa Min | MPa Min | (%min) | HB(max) | HRB(max) | HV(max) | ||
| S 201-2 | Annealed | 310 | 660 | 4040 | - | 100 | 240 |
| S 30100 | Annealed | 205 | 520 | 4040 | 219 | 95 | 210 |
| S 30100 | 1/4 hard | 520 | 860 | 2525 | - | - | - |
| S 30100 | 1/2 hard | 760 | 1030 | 1518 | - | - | - |
| S 30100 | 3/4 hard | 930 | 1210 | 1012 | - | - | - |
| S 30100 | Full hard | 965 | 1280 | 89 | - | - | - |
| S 30200 | Annealed | 205 | 520 | 4040 | 202 | 92 | 210 |
| S 30300 | Annealed | 240 | 585 | 5050 | - | - | - |
| S 30400 | Annealed | 205 | 520 | 4040 | 202 | 92 | 210 |
| S 304L | Annealed | 170 | 485 | 4040 | 183 | 88 | 210 |
2.chemical composition
| C | Si | Mn | P≤ | S≤ | Cr | Mo | Ni | Other | |
| 201 | ≤0.15 | ≤1.00 | 5.5-7.5 | 0.06 | 0.03 | 16-18 | - | 3.5-5.5 | N≤0.25 |
| 202 | ≤0.15 | ≤1.00 | 7.5-10.0 | 0.06 | 0.03 | 17-19 | - | 4.0-6.0 | N≤0.25 |
| 301 | ≤0.15 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | - | 6.0-8.0 | - |
| 303 | ≤0.15 | ≤1.00 | ≤2.00 | 0.2 | ≥0.015 | 17-19 | ≤0.6 | 8.0-10.0 | - |
| 304 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 18-20 | - | 8-10.5 | - |
| 316 | ≤0.08 | ≤1.00 | ≤2.00 | 0.045 | 0.03 | 16-18 | 2-3 | 10-14 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.00 | 0.04 | 0.03 | 16-18 | - | ≤0.6 |

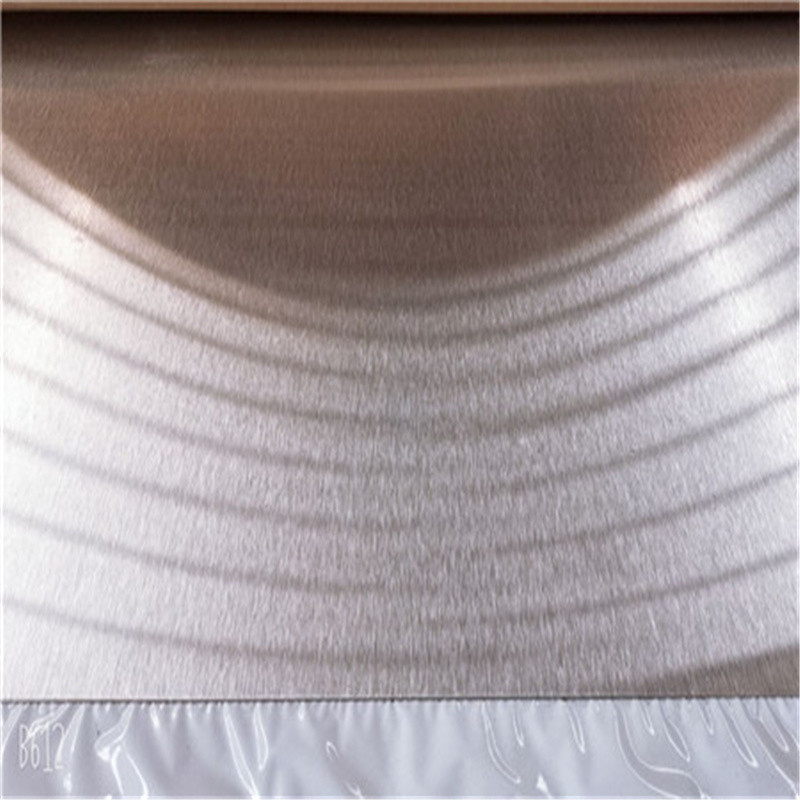

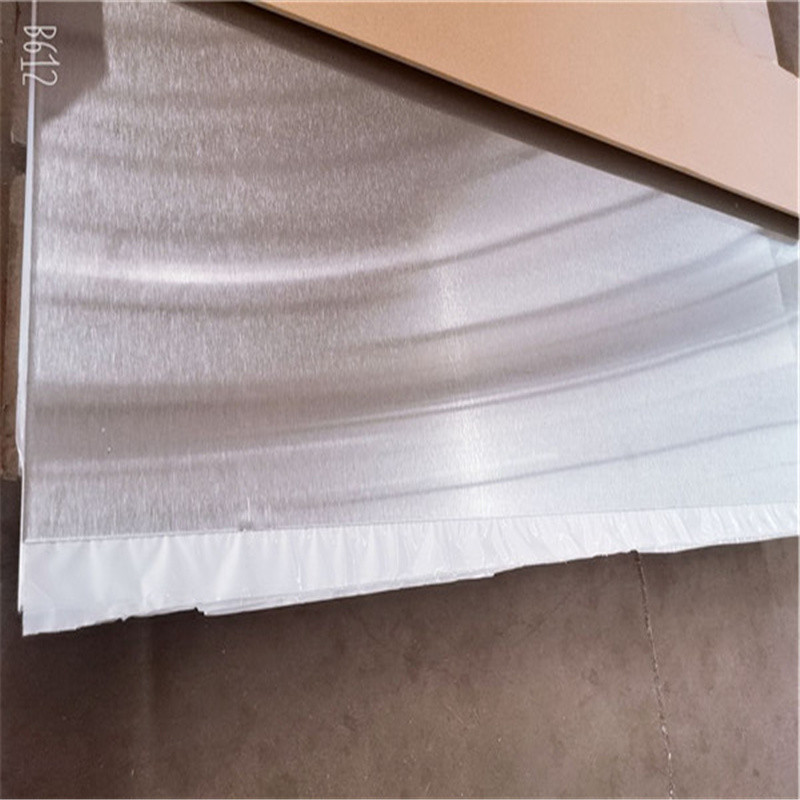

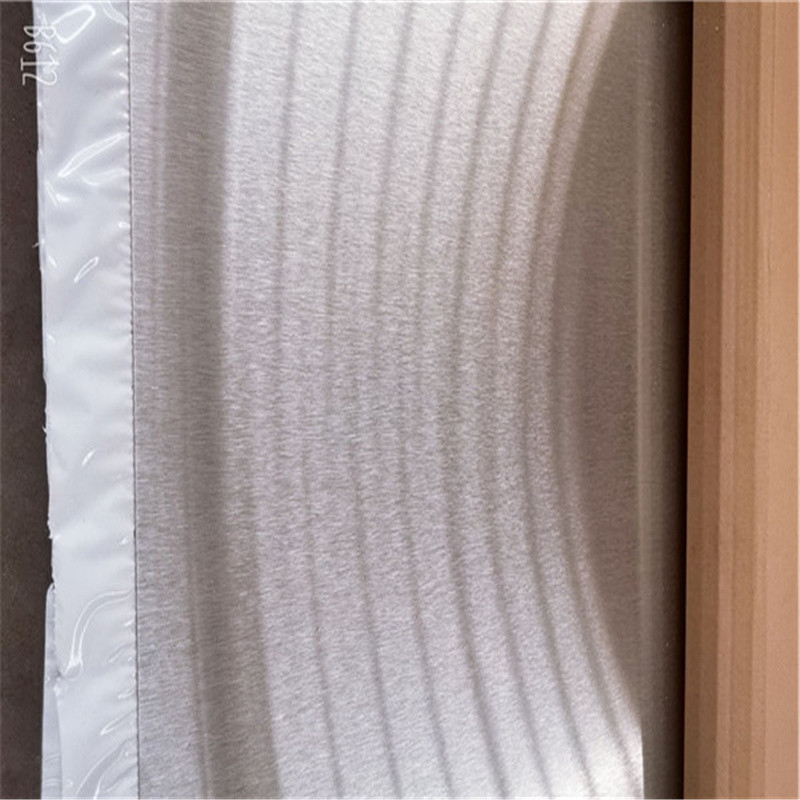

3.product show
