Product Details:
Place of Origin: china,wuxi
Brand Name: TISCO POSCO
Certification: CE/SGS/ISO
Model Number: 201/304/304l/316l/2205
Payment & Shipping Terms:
Minimum Order Quantity: 1 ton
Price: $2600/ton
Packaging Details: wooden box
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000ton/month

Astm Aisi Round 40MM 304 Stainless Steel Tubing Pipe For Buliding

Description
Name: 80mm Stainless Steel Tube Steel Grade: 300 Series,400 Series,200 Series,304L,316L Etc
Type: Welded,Seamless Welding Line Type: ERW,Seamless,Spiral Welded,EFW,weld/seamless
Standard: ASTM,JIS,AISI,DIN Thickness: 1mm-40mm,According To Your Demand
Outer Diameter: 6-630mm,6mm-630mm Or Customized Length: 3000mm~6000mm
Shape: Round.square.Rectangle Surface: Annealing,BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Technique: Cold Rolled Hot Rolled,ERW,Polished,welded Finish: Brush Polish,hairline,160grit,mirror ETC
High Light:

40MM 304 Stainless Steel Tubing

,

Aisi 304 Stainless Steel Tubing

,

40MM Stainless Steel Seamless Pipe

1.Astm Aisi Round 40MM 304 Stainless Steel Tubing Pipe For Buliding





It was established in 1999, located in Shandong Province, and has our own factories of with 20, 000. We are first class agency of Chinese state-owned enterprise BaoSteel Shanghai, Tisco steel group. We have one set producing center, cutting machines, bending machines, punching machine, water jet cutting machine, polishing machine, plate shearers, draw benches. Our aim is to produce good quality steel products with all material MTC. Our main material is stainless steel 201, 304, 321, 347H, 316, 316L, 316Ti, 317, 410, 420, 430, 904L, S31254, N08926, 2205, S32750, S32760, inconel alloy 600, 601, 625, 901, 750, 800, 800H, 825, carbon steelA53, ST33, A283, A135, ST37, A53, A106, ST35, A179, A214, A192, A226,







Name stainless steel pipe
Standard ASTM, JIS, DIN, EN, AISI, GOST, GB
Material Grade TP304 TP304L TP316 TP316L TP347 TP347H TP321 TP310 TP310 STP410 TP410S TP403
S31803/S32205 S32750 S32760
Outer Diameter Seamless Pipe: 6mm-812mm
Welded Pipe: 8mm-3000mm
Thickness Seamless Pipe: 1mm - 60mm
Welded Pipe: 0.5mm - 45mm
Length 5.8 - 7 m or as customers' request
Tolerance According to the Standard.
Surface annealed, pickled & annealed, polished , bright, matt
Test UT, ET, HT or as the requests of the customers
Certificate ISO9001-2015 ,ASME, PED , TC
Delivery Time 7-30 Days, Depends on quantity





2.chemical composition





Chemical Composition of Material
Material


Composition
201 202 304 316L 430
C ≤0.15 ≤0.15 ≤0.08 ≤0.035 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 13-15 14-17 18-20 16-18 16-18
Ni 0.7-1.1 3.5-4.5 8-10.5 10-14
Mo       2.0-3.0

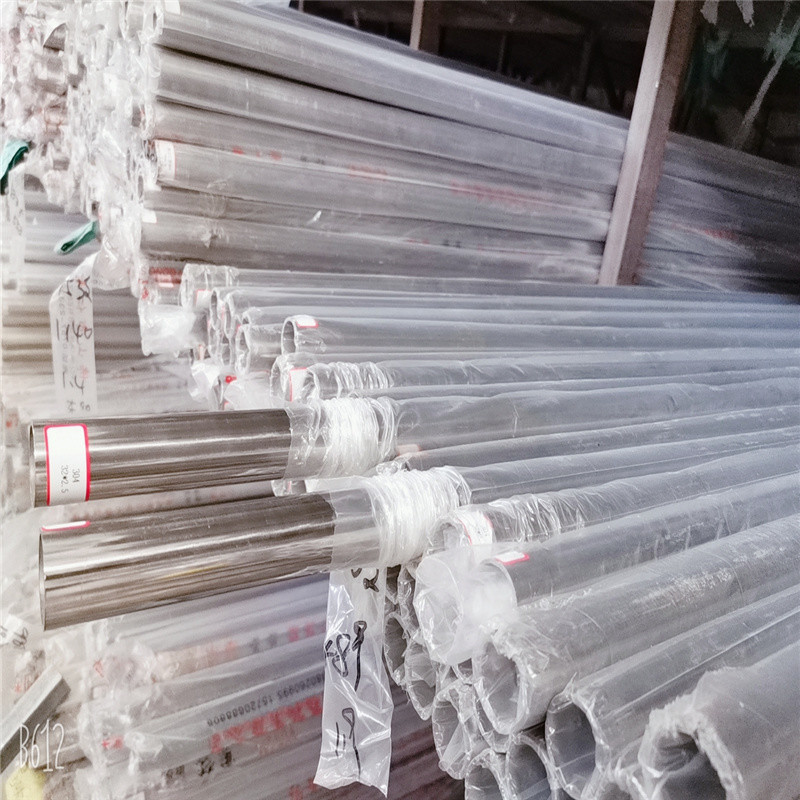

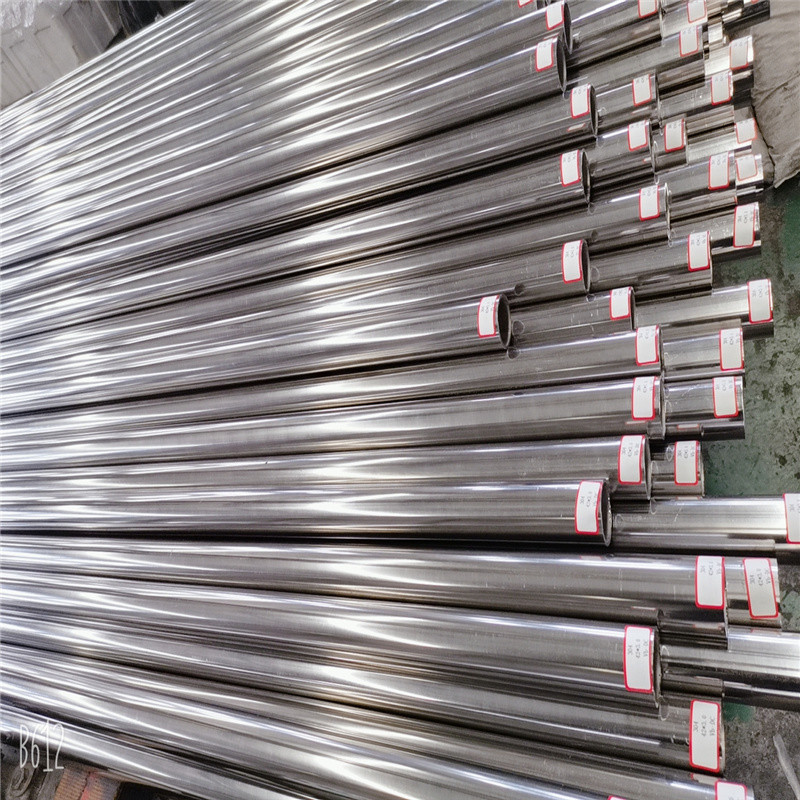

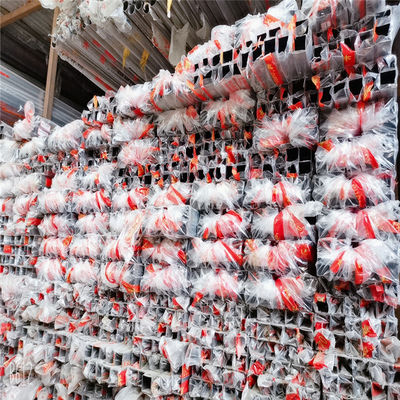

3.product show



Astm Aisi Round 40MM 304 Stainless Steel Tubing Pipe For Buliding 0



Astm Aisi Round 40MM 304 Stainless Steel Tubing Pipe For Buliding 1



Astm Aisi Round 40MM 304 Stainless Steel Tubing Pipe For Buliding 2











4.mechanical property



Mechanical Property Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90
