1.Stainless Steel Pipe (316L 304L 316ln 310S 316ti 347H 310moln 1.4835 1.4845 1.4404 1.4301 1.4571)
1) Commodity name: 316L 304L 316LN 310S 316Ti 347H 310MOLN 1.4835 1.4845 1.4404 1.4301 1.4571 Stainless Steel Pipe
2) Process method: Cold drawn
3) Surface finish: Annealed/pickled
4) Material: TP304, TP304L, TP304/304L, TP310S, TP316, TP316L, TP316/316L, TP317L, TP321, TP347H, S31803, 904L
|
|||||||||||||||
2.chemical composition
| Chemical Composition of Material | Material Composition |
201 | 202 | 304 | 316L | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.035 | ≤0.12 | |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
| Cr | 13-15 | 14-17 | 18-20 | 16-18 | 16-18 | |
| Ni | 0.7-1.1 | 3.5-4.5 | 8-10.5 | 10-14 | ||
| Mo | 2.0-3.0 |

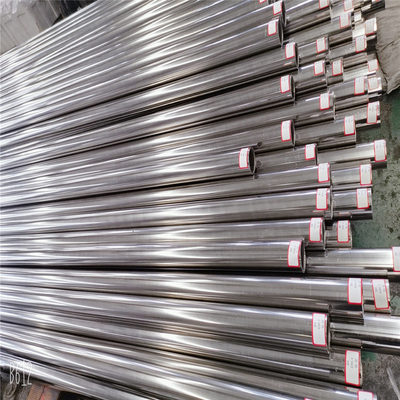

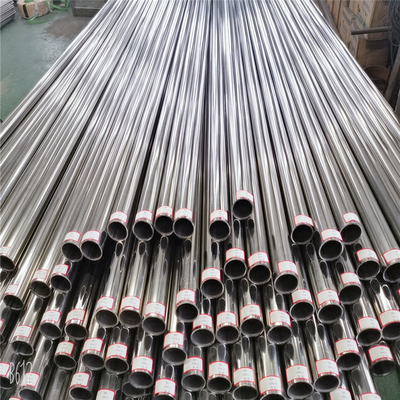

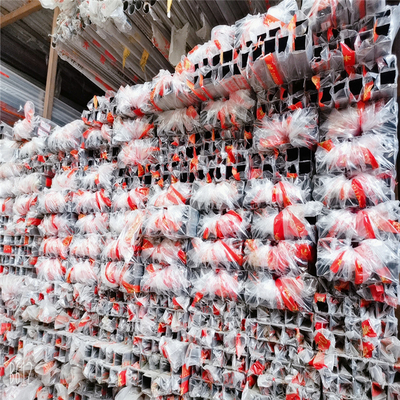

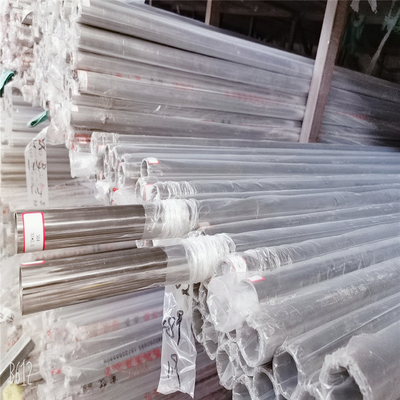

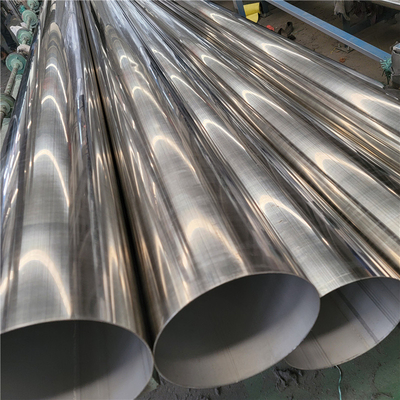

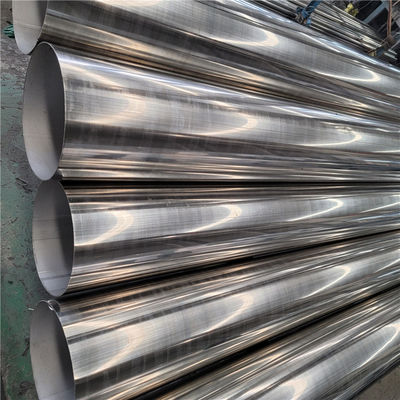

3.product show
4.mechanical property
| Mechanical Property | Material Item | 201 | 202 | 304 | 316 | |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
| Hardness (HV) | <105 | <100 | <90 | <90 | ||
